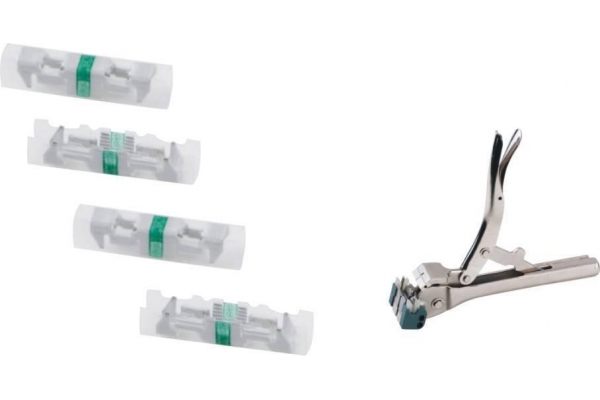

AMP Picabond Connectors Green

Product Name: AMP Picabond Connectors Green
Model NO.: YJ-50945-4
Origin: China
Packing: 1000pieces/box
Brand Name: YJ
Delivery Time: 15
Minimum Order: 10000
Quality System Certification: RoHS

Product Details: AMP Picabond Connectors Green

AMP Mini Picabond Connector Wire Splice Connector Green 60945-4 22AWG 26AWG

Quick Detail:

1. 60945-4 green picabond connector made of polycarbonate

2. wire range of 0.4-0.7 mm (26-22 AWG)

3. Base: Tin-plated Brass

4. Color:Green

5. Solid sealed

6. Crimping tool YH-244271-1

7.no prestripping or cutting required

Description:

PICABOND connectors provide an economical and reliable means of splicing multiconductor telephone cable.Lightweight and compact, PICABOND splices reduce the space required over than other splicing techniques. Straight, butt, tap,and bridge splices can be made with these connectors.

PICABOND connector provide an economical and reliable means of splicing multiconductor telephone cable.
Lightweight and compact, PICABOND splices reduce the space 33% than other.
Suitable for the cable size: 26AWG – 22AWG

Shipment Packing A: Each 1K pcs per inner box,10K pcs/carton

AMP Mini Picabond Connector Wire Splice Connector Green 60945-4 22AWG 26AWG

Shipment Packing B: In Reel.Each 1K pcs per Reel,10K pcs/carton

AMP Mini Picabond Connector Wire Splice Connector Green 60945-4 22AWG 26AWG

Mechanical Performance
Plastic Cover: PC with Green coading (UL 94v-0)
Base: Tin-plated Brass
Wire Insertion Force: 45N Typical
Wire Pull out Force: 40N Typical
Use Times: >100

Advantages
Save time – no prestripping or cutting required, can tap without service interruptions
Economical – Lower applied cost, minimum training required, higher application rates
Convenient – Use the small hand tool, easy to operation

Blue type:YH-552041-1

Tool:YJ-144271-1

Applications:

3M type wire connectors, UY connector, UY2 connector, UR connector, UB connector, UG connector and UDW2 connector are all available on sales. This wire connectors are used to connect two wires safely and fast with gel filling inside, which is moisture proof.

Specifications :

UR connector	Gel filled for moisture resistance and for PIC cable applications, filled or unfilled. It accepts two or three wires within wire range of 0.4-0.9 mm (26-19 AWG) and insulation outside diameter up to 1.52 mm/.060". It is made of polycarbonate and is Cat. 5 compliant.
UY connector	Gel filled for moisture resistance and is suitable for PIC cable applications, filled or unfilled. It accepts two wires within wire range of 0.4-0.7 mm (26-22 AWG) and insulation outside diameter up to 1.52 mm/.06". It is made of polycarbonate and is Cat. 5 compliant.
UY2 connector	gel filled for moisture resistance and is suitable for PIC cable applications, filled or unfilled.It accepts two wires within wire range of 0.4-0.9 mm (26-19 AWG) and insulation outside diameter up to 2.08 mm/.082". It is made of polypropylene and is Cat. 5 compliant.
UDW2 Connector	is a four wire (one full pair) aerial inline drop-wire connector for copper or copper coated steel conductors. It is used for mid-span splices where strain relief is provided. Gel filled for moisture resistance and for PIC cable applications, it accepts conductors within wire range of 0.9-1.3 mm (19-16 AWG) and insulation outside diameter up to 4.4 mm/.175". It is made of polycarbonate.
UG connector	llows direct tapping into existing plastic insulated solid copper conductors without interrupting service. It is gel filled for moisture resistance and for PIC cable applications, filled or filled. It accepts conductors within wire range of 0.4-0.9 mm (26-19 AWG) tap and 0.4-0.7 mm (26-22 AWG) run wire with insulation outside diameter up to 1.54 mm/.061" tap and 1.12 mm/.044" run wire. It is made of polycarbonate.
