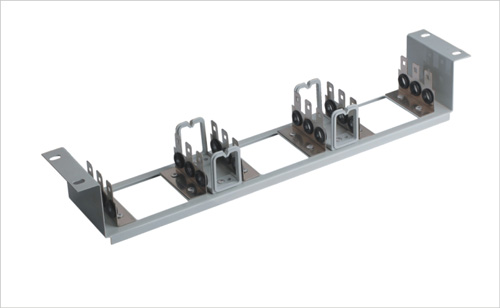

90 Pair Mounting Frame For 19 Inch Rack

19" Mounting Frame in 304 stainless steel for 19 inch rack

Quick Detail:

1. for 10pair profile krone modules.

2. Fix on 19inch rack

3. In 304 stainless steel with cable guide ring.

4. Offer 10pair disconnection and connection module and earthing module.

5. With screw to mount on the rack.

Description:

LSA Module Mounting Frame with cable guide for uniform installation
Size: 19 inch
Material: 304 stainless steel or metal on option.
Color: Black or Grey

Distribution frame for krone LSA 10pair disconnection module and connection module,easy to assemble with screw.

The distribution block is a part of connection systems. It includes 8/10 pair connection/disconnection krone module, switching, high band modules, quick connect module, 25pair splicing module, 10pair STG module, MDF, STB module,Subscriber terminal block, back-mount frames, protection systems and other related accessories.

Small capacity for copper wire connection.It is convenient for the application mounting to walls,wood,metal or poles, for networking building.It is offered under standard TIA/EIA568A/B,CE,RoHS,and ISO certificated .A widely used waterproof distribution box for outdoor application .There is earth wire inside for protection.

It offers easy access for terminations,there is standard back mount frames for mounting the krone profile module blocks.Simple hand tools and minimum skills required for installation.The cover can stand with 90 degrees in open position for easy access during installation .No wire stripping required. The rubber grommets at all drop wire entry and exit ports for protecting the wire from damage and also protecting the modules from water,duct,insects.

Applications:

Use on the 19inch rack for distribution function.

Specifications :
