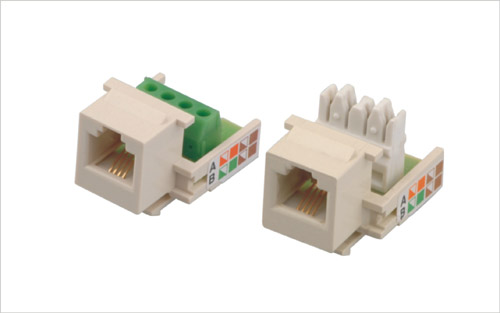

Cat.3 6P4C Keystone Jack with Terminal Block

Cat3 6P4C Screw Connection Keystone Network Jack with Terminal Block

Quick Detail:

1. Industry standard modular 'Keystone' dimensions

2. 110 IDC and terminal block termination

3. TIA/EIA 568A and 568B wiring options

4. Module material - Polycarbonate Support, ABS Jack (UL94V-0)

5. Wire gauge 22-24 AWG,easy operation

6. Cat.3 Cat5e Cat.6 and cat.6A on option,shielded and unshielded types.

Description:

Cat.3 6P4C Keystone Jack with Terminal Block

With compact size, integral shutter, keystone mounting format a, our keystone Jack for voice and Category 5e and 6A ensure a smart, reliable installation. All copper conductors are plated with gold. The 8 pins of RJ45 tool-less keystone jack are effortlessly terminated in one simple operation resulting in reliable interconnection in record time. The jacks can be reused several times if a wiring mistake is made.

Cat.3 Rj11 keystone module,Cat.5e flush mount keystone,Cat.6 high performance jack outlet,Cat.6A RJ45 module connector,UTP and FTP keystone jack, toolless insertion keystone jack on option.

What is more, there are exact suited blank patch panel, face plate and surface mount box to use together with our keystone jack. In this case, you can make the whole link with better characters.

Applications:

Compatible with YH Faceplates
Compatible with YH Surface Mount Boxes
Compatible with YH Snap-in Patch Panels

Specifications :
