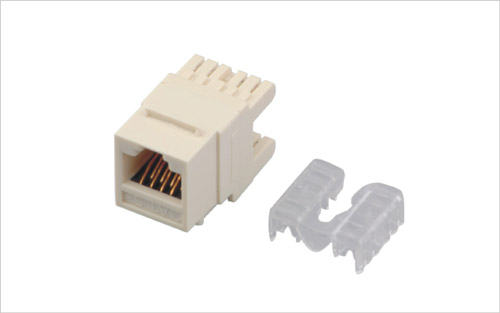

Cat.5E Cat.6 RJ45 Keystone Jack UTP

Cat.5E Cat.6 RJ45 Network keystone jack 8P8C modular jack

Quick Detail:

1.  Cat5e unshielded RJ45 Keystone jack,gold plating 50U''.Gold plating for 3U'' to 50U'' is available. Standard Cat.6 and cat.6A on option,shielded and unshielded keystone jack types.

2. 110 IDC,Dual IDC,Krone IDC termination

3. TIA/EIA 568A and 568B wiring options

4. Module material - Polycarbonate Support, ABS Jack (UL94V-0)

5. Wire gauge 22-24 AWG,easy operation

6.  Industry standard modular 'Keystone' dimensions,suitable for face plate,surface mount box,blank patch panel.

Description:

The keystone jack YH-7004 meet all requirement category 5e/6 performance standards Exceeds all ANSI/TIA/EIA 568B.

IDC: Copper conductor 0.4~0.7mm, max. connections>200 times

Sockets: max. instertions>700 times

Contact Resistance (excluding body resistance)≤5mΩ (under normal air condition)

Insulation Resistance:≥1000MΩ (under normal air condition)

Dielectric intensity: DC 1200V, no spark over and fly arc in 1 min.

Packed first each with a plastic bag,then into a inner box same with the accessories.The packed product can be saved for 2years with Temperature: -10℃∽+40℃ Relative humidity: max80% without corrosive gases.

Guide on crimping cable for this keystone jack:

With compact size, integral shutter, keystone mounting format a, our keystone Jack for voice and Category 5e and 6A ensure a smart, reliable installation. All copper conductors are plated with gold. The 8 pins of RJ45 tool-less keystone jack are effortlessly terminated in one simple operation resulting in reliable interconnection in record time. The jacks can be reused several times if a wiring mistake is made.

What is more, there are exact suited blank patch panel, face plate and surface mount box to use together with our keystone jack. In this case, you can make the whole link with better characters.

Applications:

The module is mainly used for connecting the same horizontal floor wiring and building work area, mainly for wiring equipment and terminal equipment or adapter converter connection. Products matching with copper twisted 4pair cable and copper coacial jumper.

Compatible with YL Faceplates

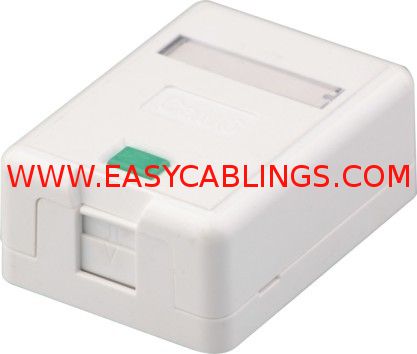

Compatible with YL Surface Mount Boxes
Compatible with YL Snap-in Patch Panels

Specifications :
