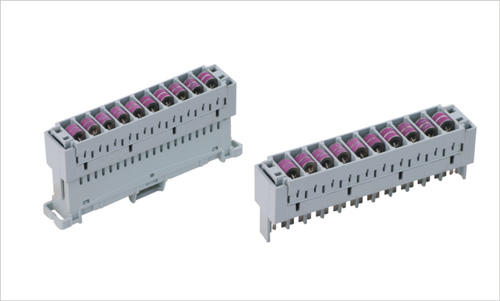

10 Pair 3 Pole Arrester Magazine Equipped Or Unequipped

Overvoltage Protector With 3 pole Arrester For LSA Connection Module 230V Failsafe

Quick Detail:

1, Material: PBT or ABS(UL94V-0)

2, Contact: Phosphor Bronze

3, Silver Plating: 0.5 um1.25 um5 um

4, Can be installed on krone type terminal block

5, With 2pole arrester or 3 pole arrester,can be with duct cover.

6. 8Pair protection magazine,10Pair protection magazine,krone single pair protector,5pin lightning protector,various type on option.

7, 100% test passed,arrester voltage usually for 230V,it can be on your requirement.

Description:

Mechanical Performance
Plastic material: ABS&PBT(UL94V-0)
Contact material: Phosphor Bronze.
Surface Plating Silver(0.5um-5um)
Earth bar: Phosphor Bronze.
Surface Plating nickel

Electrical Performance:
Insulation Resistance: R≥1000M Ohm
Contact Resistance: R≤5m ohm
Dielectric Strength: 1200V DC 60s can't spark over and haven't fly arc

The 10pair LSA magazine can be offerred with arrester or unequiped.Gas Discharge Arrester available for 2pole and 3pole types.Usually with voltage 230v arrester(GDT).Each magazine is completely tested before sending to our clients.This protection magazine is used together with the LSA krone module 10pair and 8pair .Meantime there is a plastic cover to plug into the top for avoid any duct affaction.

ORDERING INFORMATION

Item no. Description

YJ-50892024-61 10pair magazine with 2pole arrester,unequipped on option
YJ-50892023-08 10pair magazine with 3pole arrester,unequipped on option

The module housing material we mainly offer with imported GE PBT and ABS(UL94V-0).Both material we will use new rall material but not recycling material(first recycling or second recycling).So we can offer good performance modules.You can get very cheap products in the market but they are mainly made of such recycling material PBT or ABS.

Applications:

High speed LAN and WAN systems,used to protect the telecom equipment from damage of lightning,over voltage and over currence.
