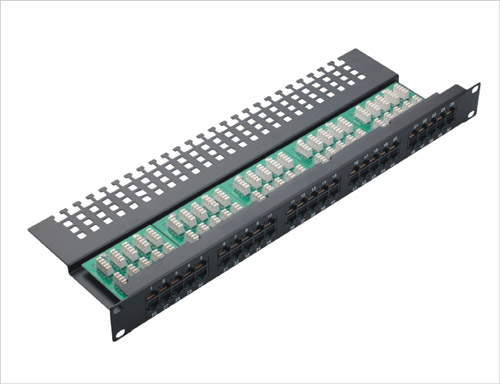

Cat.3 50ports Voice network patch panel Krone 110 IDC T568A/B
Quick Detail:
1. Category 3 Patch Panel,25ports
2. 19 inch,1U
3. IDC option: Krone IDC,110IDC,Dual IDC
4. IDC contract material : phosphor bronze with tin plating over nickel
5. Thickness of gold plating:3u”,6 u”, 15u”,30 u”, 50 u”
6. Meet or exceed the requirement of ANSI /TIA/EIA 568B.2
Description:
We are professional patch panel manufacturer in China. Our patch panel includes voice type 25port and 50port, data type(cat.5e,cat.6, cat.6a) with 6port 12port 24port 48port and 72port on option. We use good PCD board and IDC connectors (krone IDC, 110 IDC, Dual IDC for option) to ensure the characters for each product. Specially for 24port Cat5e.UTP patch panel ,we offer not only in flat configuration as normal but also offer angel patch panels configuration.
The patch panel is offered universal wiring both T568A and T568B,color Coded TIA/EIA 568a and 568b Wiring For Easy Installation.Termination accepts 22,24 26 AWG (0.64 ,0.5 and 0.4 )solid wires.Meet or exceed the requirement of ANSI /TIA/EIA 568B.2. We will do the Fluke test before sending you our products.
Each patch panel will be packed firstly with a plastic bag and then a firm inner box.Colorful inner box OEM is available.Usually we use a natural brown box for most of the clients.The patch panel we sell annual amount above 10000peices over the world.
Applications:
Telephone cat.3 krone IDC patch panel
1. Meet TIA/EIA-568-A and TIA/EIA-568-B
2. 25ports/50ports patch panel
Specifications :
YUHUI Voice and Data Patch panel | |
IDC | Silver plated in the surface of the contact conductor |
Insulation resistance | 1000 Mohms minimum |
Copper conductor | 0.4-0.7mm( 22-26 AWG Solid wire) |
Contact resistance | 7 mohms maximum |
Dielectric intensity | AC 1000 Vrms 50Hz or 60Hz in 60s |
Storage Temperature | -40 to 70° C |
Operating Temperature | -10 to 60° C |
Relative Humidity | 95%, noncondtion |
Design to mount | Any standard 19" rack or cabinet (and 10inch type) |
Space saving |
high-density 1U (24 port ,48port ,25port,50port available). |
