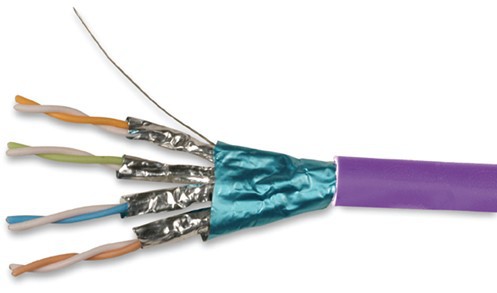

Cat 7 Lan Cable with PVC Jacket Pass Fluke HDPE Insulation
Quick Detail:
1. EIA/TIA 568B.2-10& ISO/IEC 11801, IEC 61156
2. Solid bare copper conductor
3. Colour-coded PE insulation,Rip cord (optional)
4. Cat.7 FTP performance
5. PVC or LSZH jacket
6. Packaging: Reel,Reel in Box
Description
Youjet Intelligent Structure Cabling products include shielded and unshielded
Category 5E, Category 6, Category 6A and Category 7 and all series fiber optic
products.
Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
data transmission.
The solution is for hospital, government manufacturingand other environments.
Specification
No. of Cord | 4 Pairs | |
Conductor | Material | BC |
Construction | 1/0.57± 0.008mm | |
Insulation | Material | HDPE |
Filler | / | |
Shield | Material | Aluminum Mylar |
Braiding | Aluminum Magnesium Ally Solid | |
Drain Wire | Material | Aluminum Magnesium Metal |
Rip Cord | Nylon | |
PE Cross | Material | Polyethy Lene |
Construction | 4.4mm*4.4mm | |
Jacket | Material | PVC |
O.D. | 7.8 ± 0.2mm | |
Color | Customized | |
Marking | Customized | |
Mutual Capacitance | 5.8nF/100m | |
Dielectric Test | 1000V DC /1 min ; No Breakdown | |
Temperature Rating | 60℃ | |
Operating Temperature | -20℃ ~ 80℃ | |
Velocity of Propagation | 0.69 |
Part number |
Description |
AWG |
Standard color |
Packing Type |
Carton |
Material |
YJ-LC001 |
Cat 5E UTP/FTP/SFTP solid cable |
24AWG |
RAL7004 |
Box |
305m(1000ft) |
PVC/LSZH |
YJ-LC002 |
Cat 6 UTP/FTP/SFTP solid cable |
24AWG |
RAL7004 |
Box |
305m(1000ft) |
PVC/LSZH |
YJ-LC003 |
Cat 6A UTP/FTP/SFTP solid cable |
23AWG |
RAL7035 |
Box |
305m(1000ft) |
PVC/LSZH |
YJ-LC007 |
Cat 7 FTP/SFTP solid cable |
23AWG |
RAL7035 |
Box |
305m(1000ft) |
PVC/LSZH |
For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
