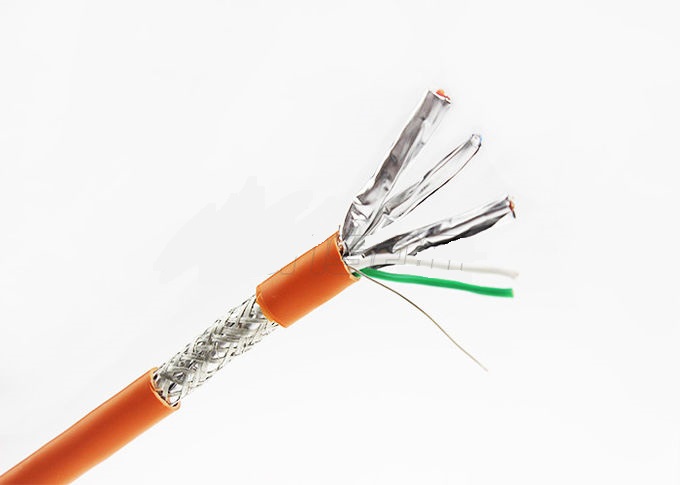

Cat6a SFTP Cable, Transmission Shielded Cat6a Cable , Copper Braiding Network

Product Name: Cat6a SFTP Cable, Transmission Shielded Cat6a Cable , Copper Braiding Network
Model NO.: YL-LC004
Origin: china
Packing: 305 meter/BOX
Brand Name: Youjet
Delivery Time: 10 days
Minimum Order: 20 boxes
Supply Ability: 1000 Box/Day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: Cat6a SFTP Cable, Transmission Shielded Cat6a Cable , Copper Braiding Network

Cat6a S/FTP Cable, Transmission Shielded Cat6a Cable , Copper Braiding Network

Quick Detail:

EIA/TIA 568B.2-10& ISO/IEC 11801, IEC 61156

Solid bare copper conductor

Colour-coded PE insulation,Rip cord (optional)

Cat.6 performance

PVC or LSZH jacket

Packaging: Reel,Reel in Box

Description

Youjet Intelligent Structure Cabling products include shielded and unshielded

Category 5E, Category 6, Category 6A and Category 7 and all series fiber optic
products.

Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
data transmission.

The solution is for hospital, government manufacturingand other environments.

No. of Cord	4 Twisted Pairs
Conductor	Material	Solid BC
Conductor	Construction	23AWG 1/0.57± 0.006mm
Insulation	Material	HDPE
Filler	/
Shield	Material	/
Shield	Braiding	/
Drain Wire	Material	/
Rip Cord	Nylon
PE Cross	Material	Polyethene
PE Cross	Construction	4.4mm*4.4mm
Jacket	Material	ROHS
	O.D.	7.6 ± 0.3mm
	Color	Green or Customized
Marking	Customized
Mutual Capacitance	5.8nF/100m
Dielectric Test	1000V DC /1 min ; No Breakdown
Temperature Rating	60℃
Operating Temperature	-20℃ ~ 80℃
Velocity of Propagation	0.69

Part number	Description	AWG	Standard color	Packing Type	Carton	Material
YJ-LC001	Cat 5E UTP/FTP/SFTP solid cable	24AWG	RAL7004	Box	305m(1000ft)	PVC/LSZH
YJ-LC002	Cat 6 UTP/FTP/SFTP solid cable	24AWG	RAL7004	Box	305m(1000ft)	PVC/LSZH
YJ-LC003	Cat 6A UTP/FTP/SFTP solid cable	23AWG	RAL7035	Box	305m(1000ft)	PVC/LSZH
YJ-LC007	Cat 7 FTP/SFTP solid cable	23AWG	RAL7035	Box	305m(1000ft)	PVC/LSZH

For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
