Pole Line Hardware FTTX Fiber Optic Accessories FOC Fish - Clamp Self Adjustable

FOC Fish-Clamp Self-Adjustable drop wire Clamp Fiber Optic Accessories For Pole line Hardware FTTX

Quick Detail:

1. Material:Plastic and Galvanized steel ,original Sunsang

2. CableFish applicable to 3.0mm, 2x3.1mm, 3.3x2.0mm and 5.0x2.0mm

3. For better Tensile strength performance

4. ISO 9001:2008 Certified

5. Tensile strength:500N

6. To be used in anchoring, turning, suspension optical fiber cable routes

7. FTTH drop cable clamp allows easy,installation without additional tools

Description:

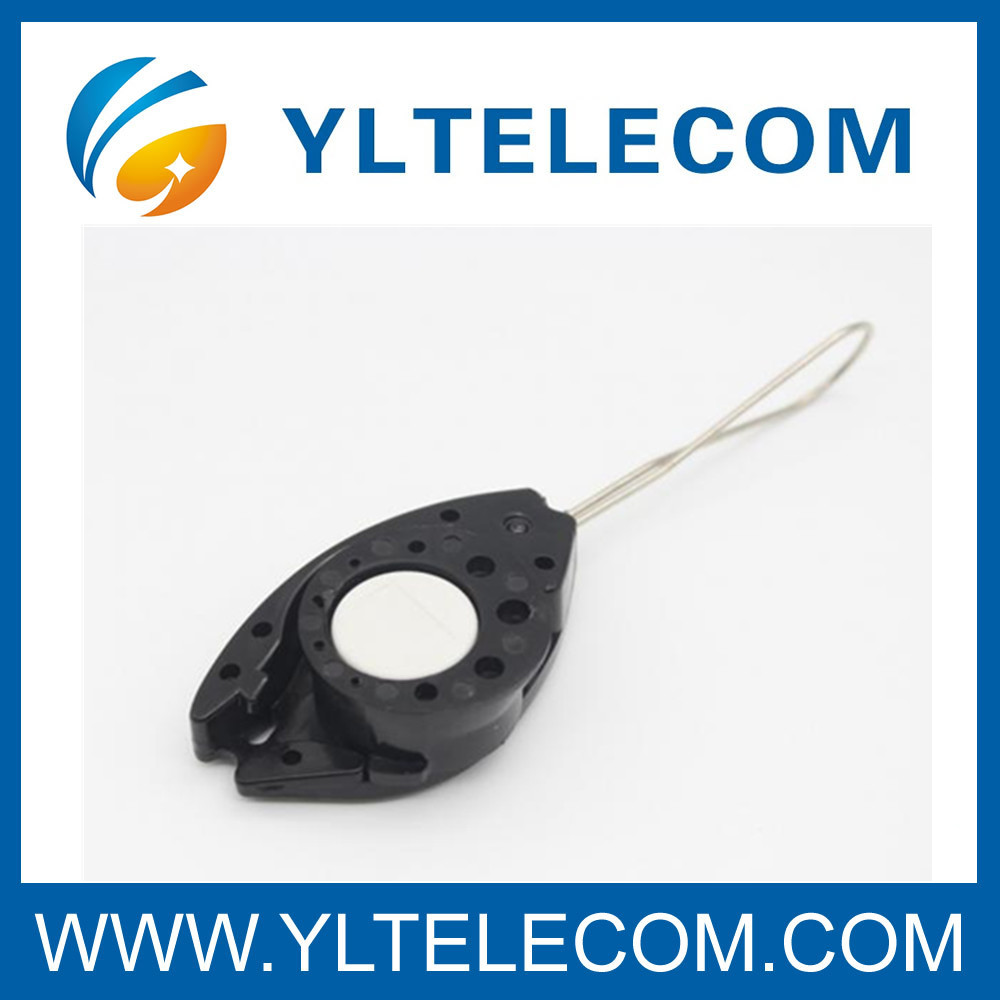

The clamping devices looks like a fish that given the name "CableFish" .We also call it Fish Clamp,Fish-Clamp,FOC Fish-clamp YJ-1074 fish clamp,for it's performance Self-adjustable suitable to FTTx service in anywhere around the world,no need to worry the drop wire direction that you find problem with other clamps.The drop wire clamp YJ-1074,YJ-1049,YJ-1069 and YJ-1070 outdoor anchoring drop wire, mostly used with optical fiber drop cable.CableFish YJ-1074 applicable to 3.0mm, 2x3.1mm, 3.3x2.0mm and 5.0x2.0mm,This drop clamping device is necessary for FTTx solutions.

If CableCrab applies to the telephone pole or suspension wire, Drop cable can be headed to any homes or buildings no matter what direction and location are.

Fish clamp FTTH,YJ-1074 cablefish can be used in anchoring, turning, suspension optical fiber cable routes.Galvanized steel wire tail allows installations of drop wire fish clamp on a pole brackets, SS hooks,cablecrab. Drop wire anchoring clamps and optical fiber cable brackets are available either separately or together when assembly.This type of FTTH drop cable clamp YJ-1074 allows easy, installation without additional tools.Application is similar to all wedge type self-adjusting tension clamps, but should be done according to specification.

All the assemblies passed the tensile tests before delivery, operation experience with temperatures ranging from – 60 °C up to +60 °C test, temperature cycling test, aging test, corrosion resistance test .Off-Test products will not offered.

YJ-1074 Self-adjustable FOC fish clamp Usage:

1.For the drop wire without Suspension Wire(in case of fiber optics diameter is 3.3mm * 2.0mm): 2 turns

2.For the drop wire with Suspension Wire(in case of fiber optics diameter is 5.0mm * 2.0mm): 1 turns

The above Span clamp and outdoor wire anchor is mainly used outside for out plant wire hanging supports,we also offer more accessories for Indoor wire cable cabling on wall,on dest,in corner and so on.

TheFTTH Installation Accessories Set concludes:junction box,fiber wall socket(also named Single family unit rosette,SFU rosette),draw hooks,cable clamp,cable wall bushings,cable glands,cable clips,tail duct,cable wiring duct,nail clip.

Applications:

To feed drop cable to Home(FTTH) and other FTTx service.

Specification:
