Descriptions
Field Assembly Optical Connector (FAOC), or Fast connector is a perfect solution for filed working and FTTH connection. It is widely used for where need to quick connection, providing a quick assembly and stable performance. When engineers work in field for installation, maintenance, repair of optical fiber, or FTTH indoor terminate, they can use it easily because it has no epoxy, no polishing.

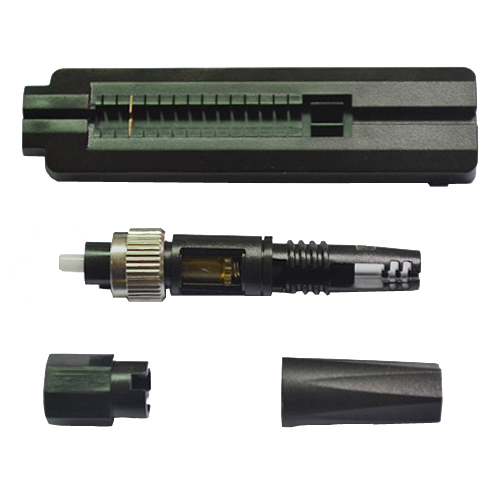

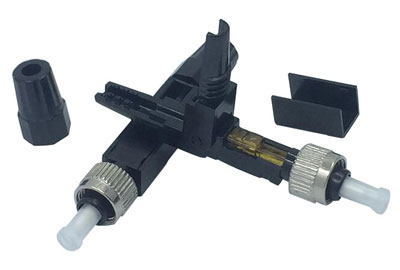

FC/UPC SM Fast Connector is designed inside ferrule with fiber stuff and pre-polishing in the factory. It provides a perfect ferrule endface quality. This has great help to protect user`s equipment interface and improves the connector loss.
Features
One-piece connector or attenuator
Inside ferrule with fiber stuff and pre-polishing
Field installable, quich connection, easy for operation
No epoxy, no polishing, no adhesive, no electricity required
High performance and high reliability
Simply and easy fixed fiber or cable
Cable Tensile complied with Telcordia GR-326-CORE
Applications
Optical Distribution Frame
Optical Network Equipments
FTTH, CATV
Specifications
|
ITEM |
Technical Parameters |
|
Applicable for |
Drop cable. Indoor cable |
|
Optical fiber diameter |
125μm ( 657A & 657B ) |
|
Tight buffer diameter |
900μm |
|
Fiber mode |
Single mode |
|
Polishing Type |
UPC or APC |
|
Operation time |
About 120s(no fiber cut) |
|
Insert loss |
≤ 0.3dB(1310nm & 1550nm) |
|
Return loss |
≥50dB |
|
Fastening strength of naked fiber |
>5 N |
|
Fastening strength of naked fiber holder |
>10 N |
|
Tensile strength |
>50 N |
|
Using temperature |
-40~+75℃ |
|
On-line tensile strength (20 N) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
|
Mechanical durability (500 times) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
|
Drop-off test (drop-off height 4m, once per direction, totally 3 times) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
