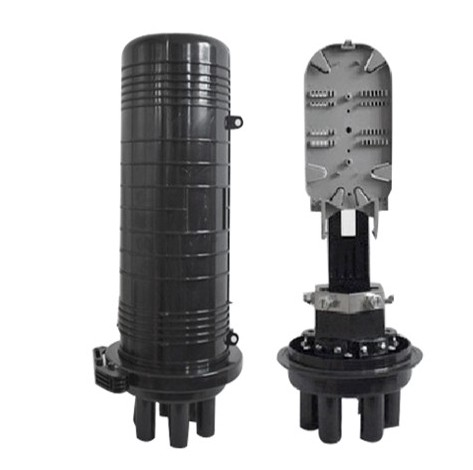

24/48/72/96Core PC+ABS Fiber Optic Splice Closure , Dome heatshrink fiber cable splice closure

Among those famous inline Fiber Optic Splice Closure GHG-701 manufacturers and suppliers in China, YOUJET Telecom Tech Co.,Ltd can offer you customized inland Fiber Optic Splice Closure GHG-701 made in China. Looking forward to your contact.

Description:

Fiber optic splice closure is a passive component which can provide a great protection for fiber splicing point. Aerially assembling, pipeline assembling and buried underground are all available.

IP68 Dome type waterproof fiber optical closure. Max 4 trays and 96 cores; Suit for 8-25mm cables; Used for wall mounted, pole mounted, man hole, duct mounting and pipeline, direct buried.

1. Protection grade:IP68

2. Material:PC,ABS(new first hand raw material)

3. Number of cable ports: 1 big oval port and 4 small round ports

4. Maximum Trays: 4 trays

5. Maximum Cores:96(singlel core)

6. Dimension (HxD):425mm *190 mm

7. Package material:Carton

8. Weight:2.5-3.0Kg

9. Cable diameter range:8-25mm

10. Sealing way of cables:Heat shrinking

11. Quality warrenty:2 years

12. Life span:more than 25 years

Applications:

FTTx, FTTH, FTTB, FTTO, Telecom network, CATV, Provide fusion and storage appliance for optical cables,for indoor fiber optic cable distribution.

Competitive Advantage:

Easy & fast installation with no special tools,suit for uncut cables

Superior sealing performance(free sample for testing)

The closure can be repeatly used many times.

The cables can be fixed via 3 points,safe and reliable

Enough space for surplus fibers inside the closure

Flexible branching for fibers

loose leaf type of splice tray fixing,easy operation&maintain

Modular fiber management system

Specifications :
