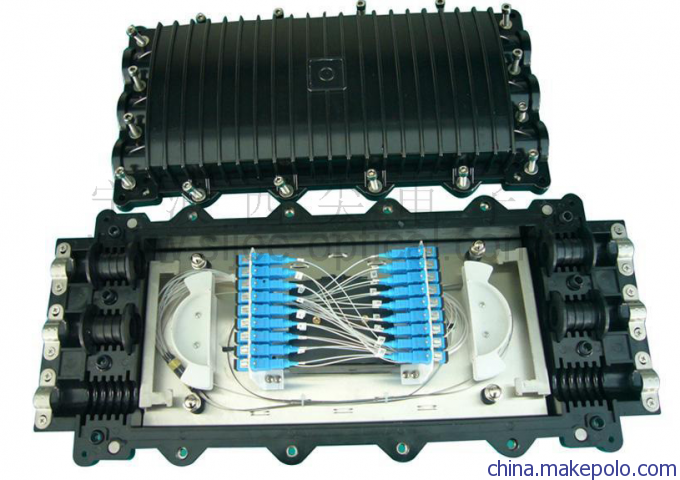

24-96 Core Fiber Optical Splice Enclosure with mechanical

Product Name: 24-96 Core Fiber Optical Splice Enclosure with mechanical
Model NO.: YL-GHG-501
Size: 400mmx190mmx108mm
Origin: china
Packing: 10piece/box
Brand Name: Youjet
Delivery Time: 10 days
Minimum Order: 50 Pieces
Supply Ability: 10000pieces/month
Quality System Certification: ISO,RHOS,UL,CE

Product Details: 24-96 Core Fiber Optical Splice Enclosure with mechanical

24/48/72/96 Core Fiber Optical Splice Enclosure with mechanical sealing PC

Among those famous inline Fiber Optic Splice Closure GHG-501 manufacturers and suppliers in China, YOUJET Telecom Tech Co.,Ltd can offer you customized inland Fiber Optic Splice Closure GHG-501 made in China. Looking forward to your contact.

Description:

Fiber optic splice closure is a passive component which can provide a great protection for fiber splicing point. Aerially assembling, pipeline assembling and buried underground are all available.

The Inland type closure is also called Horizontal closure. The input and output are on the both sides. Inline closure is more suitable for backbone application. YOUJET Telecom provides various shapes closure of Inland type. All the closures we offered are with a great sealing performance. High quality PC or PP material also ensures the durability whether the closure is in air, in pipeline or buried underground.

Applications:

FTTx, FTTH, FTTB, FTTO, Telecom network, CATV.Provide fusion and storage appliance for optical cables,for indoor fiber optic cable distribution.

Specifications :

Model	YJ-GHG-501
Type	Inline Type(Horizontal Type)
Dimension	400mmx190mmx108mm
Material	PP/PC
Number of Splice Trays	1-4 Pieces(24F/tray)
Number of Inlet/Outlet Ports	6 Pieces(3 in +3 out)
Diameter of Fiber Cable	5mm~23mm
Max Capacity(Cores)	Bunchy:96F
Operation Temperature	-40~65 (℃)
Storage Temperature	-40~85 (℃)
