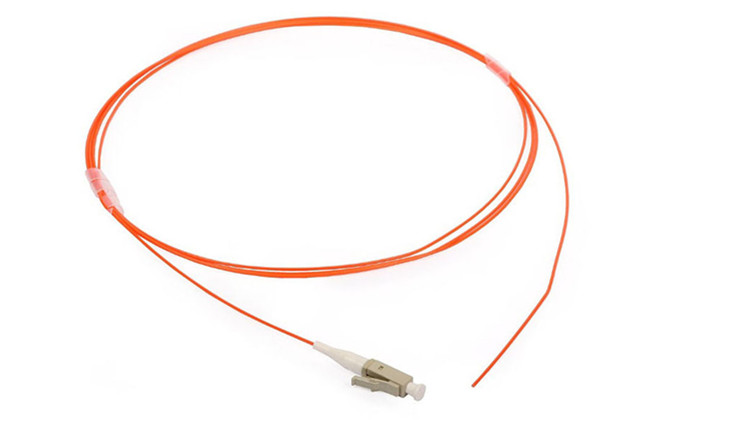

Fiber cable of LC MM Fiber Optic Patch Cord , LC bundle LC Fan-out Multimode Pigtail For FTTH are designed and manufactured in ISO9001 registered facility.
The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.
Assemblies are available in all major fiber optic connector types; a range of cable color options available.
Quick Detail:
Model Number: LC bundle pigtail
Cable Dia.: Single: 3.0MM; 2.0MM; 0.9MM, Duplex: 2.0x2.0mm, 2.0x3.0mm
Ferrule material: Reinforced Zirconium dioxide
OM type: Single: 9/125UM; Multi:50/125UM; 62.5/125UM
Connector type: SC; FC; LC; ST; MU etc.
Ferrule End face: PC; UPC; APC
Cable quantity: Single; Multi; 6cores; 12cores; 16cores; 24cores; 36cores; 48cores
Cable length: 1M; 2M; 3M; 4M etc., can be customized
Cable type: PVC; LSZH; OM3; OFNR; OFNP; Plenum; Armored
Application: CATV, cabling system, ODF etc.
Description:
Various connector type available
Low back reflection loss
Compact size
Low insertion loss
High Return Loss
Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available
Single-mode Fiber or Multi-mode Fiber Available (For Simplex or Duplex)
Applications:
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness
Specifications :
Item |
Mode Type |
PC |
SPC |
UPC |
APC |
Insertion Loss |
SM |
≤0.25dB |
≤0.20dB |
≤0.20dB |
≤0.20dB |
MM |
≤0.30dB |
≤0.20dB |
≤0.20dB |
≤0.30dB |
|
Return Loss |
SM |
≥45dB |
≥50dB |
≥55dB |
≥65dB |
MM |
≥35dB |
≥35dB |
≥35dB |
≥35dB |
|
Repetition Test |
Additional Loss≤0.1dB,Reture Loss Variability<5dB |
||||
Temperature Stability(-40°C~85°C) |
Additional Loss≤0.2dB,Reture Loss Variability<5dB |
||||
Operating Temperature |
-40°C~+75°C |
||||
Storage Temperature |
-40°C~+85°C |
||||
-Option:CableDiameters;0.9,2mm,3mm&others |
|
|
|
||
-Type:simplex,duplex,Matrial Type:pvc,hytrel,LSZH,OFNP,OFNR |
|
Competitive advantages:
