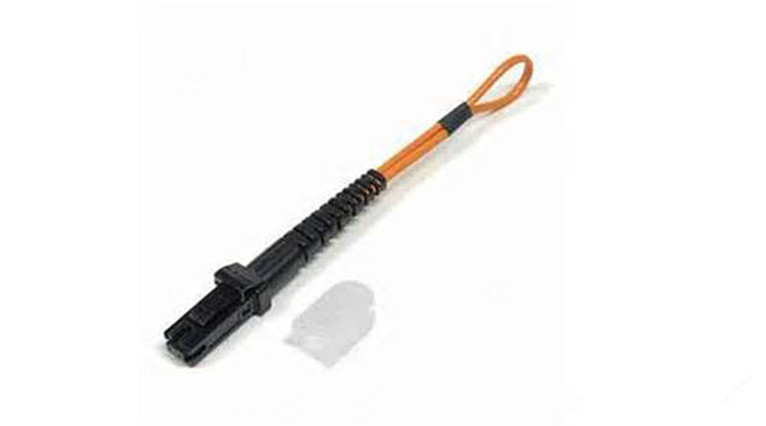

MTRJ Fiber Optic Jumper Loopback , Customized MTRJ Patch Cord Cable For Networking

Product Name: MTRJ Fiber Optic Jumper Loopback , Customized MTRJ Patch Cord Cable For Networking
Model NO.: YJ-024
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: MTRJ Fiber Optic Jumper Loopback , Customized MTRJ Patch Cord Cable For Networking

We supply MTRJ Fiber Optic Jumper Loopback , Customized MTRJ Patch Cord Cable For Networking with very competitive prices, every single piece of MTRJ Fiber Optic Jumper Loopback , Customized MTRJ Patch Cord Cable For Networking is tested in the workshop before delivering to the customer.

Fiber cable of MTRJ Fiber Optic Jumper Loopback , Customized MTRJ Patch Cord Cable For Networking are designed and manufactured in ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Quick Detail:

Item: MTRJ patch cord

Connector PIN: Male,Female

Boot type: 2.0/3.0mm duplex zipcord cable boot, slotted

Fiber type: SM,MM(50/125um,62.5/125um),OM3,OM4

Cable number: Simplex,Duplex,Multi-fiber

Length: 1m,2m,3m or Customized

Hook Color: Biege,Black,Blue

Inserted core cover: PC,APC

Plating material: PVC, LSZH

Certification: ISO9001,RoHS,FCC,CE

Description:

This patch cord fiber is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment.

Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box.This is known as "interconnect-style cabling".

Applications:

Communication rooms

FTTH (Fiber to The Home)

LAN (Local Area Network)

FOS (fiber optic sensor)

Fiber Optic Communication System

Optical fiber connected and transmitted equipment

Defense combat readiness

Specifications :

patch cord fiber

Mode	SM	MM
Polish	UPC	PC
Insertion Loss	Typical ≤0.3dB Maximum ≤0.5dB	≤0.5dB
Return Loss	≥45dB	≥30dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB typical change, 1000 matings
Tensile Strength	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)

patch cord fiber

Connector PIN

Boot type

Boot Color

Fiber Type

Cable number

Length

Male

Female

2.0/3.0mm duplex zipcord cable boot, slotted

Black

Biege

Blue

9/125um SM

50/125um MM

62.5/125um MM

OM3

OM4

Simplex

Duplex

Multi-fiber

Customized

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
