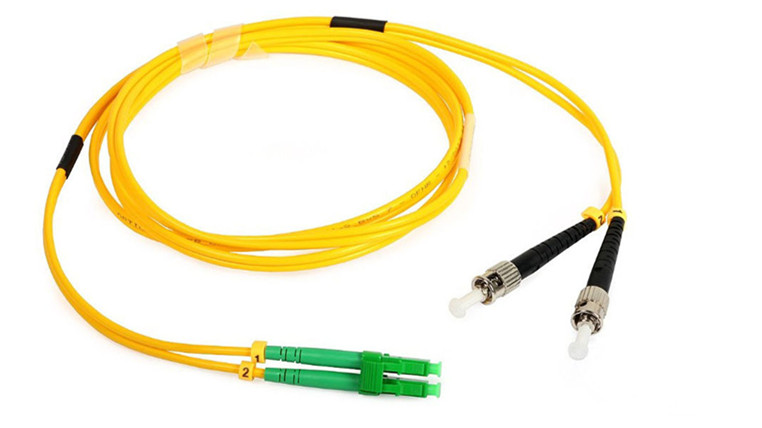

Fiber cable of LC APC/ ST Fiber Optic Patch Cord Single mode Telcordia GR-326-CORE.China Manufacturer LC/ST Fiber Optic Patch Cord Singlemode 9/125 are designed and manufactured in ISO9001 registered facility.
The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.
Assemblies are available in all major fiber optic connector types; a range of cable color options available.
Quick Details :
Cable Type: Simplex, Duplex, Bundle, Ribbon
Fiber Type : SM/MM
Length : Per customer's Request
Polish : UPC/APC/PC
Insertion Loss : ≤0.3dB
Return Loss : >= 50db
Connector Type : FC,ST,SC,LC, MPO, MU ect...
Packing Details: Zip plastic bag
Description:
Low insertion loss and back reflection loss
Good echangeability
Good Durability
High temperature stability.
Standard: Telcordia GR-326-CORE
Precise connector
Excellent mechanical capability
Patch cords accord with bellcord GR-326 ,ISO9001,ROHS
Applications:
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness
Specifications :
Type |
Standard,Master |
Style |
LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
Fiber |
Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
Cable |
Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH |
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
Insertion Loss |
≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
Return Loss (Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
Repeatability |
±0.1dB |
Operating temperature |
-400C to 850C |
Geometry Requirement ( Singlemode) |
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
