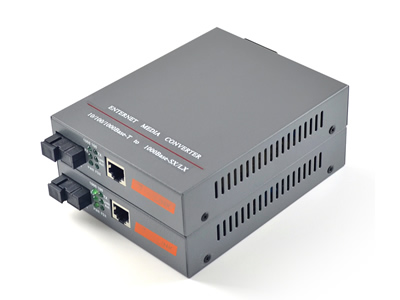

1000M Single-Mode Single Fiber Optic Media Converter

1000M Single-mode Single Fiber Optic Ethernet Media Converter

YoujetTelecom  Fiber Optic Media Converter Series Gigabit Fiber Converter can convert Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M optical fiber interface (FX). The traditional 10/100/1000M gigabit Ethernet can be extended to the distance of 100km through optical fiber link. The performance and quality of the products are excellent because of adopting latest Gigabyte IC from USA and Taiwan. 6 Group LED indicated lights could fully monitor the working conditions of converters. It is easy for users to observe and diagnose the failure of converters.

Feature

The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.

The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.

Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.

UTP port supports MDI / MDI-X auto crossover.

Supporting the max 1536 byte Ethernet packet

Supporting flow control

Adopting internal power supply.

Specification


MAC address table: 1K External power: 26× 70× 93mm

Operating standards: IEEE802.3z/AB 1000Base-T, 1000Base-SX/LX

MAC address table:4K

Data Buffer:256K

Connector:

UTP: RJ-45, 10/100/1000Mbps

Fiber: SC,1000Mbps

Cable:

UTP: Cat 5e or Cat 6 (the max distance up to 100m)?

Fiber (multimode): 50/125, 62.5/125μm (the max distance up to 550/224m)

Fiber (singlemode): 8.3/125, 8.7/125, 9/125μm (the max distance up to 100km)

Flow Control

Full Duplex: IEEE802.3x flow control

Half Duplex: back pressure flow control

Power: AC110-240V to DC5V; DC 48V to DC5V.

Ambient temperature: 0 ~ 50℃

Storage temperature: -40 ~ 70℃

Humidity: 5% ~ 90%

Dimensions: 40 (high) x 110 (width) x 140 (length) mm

Order Information


Note


10/100M/1000M Singlemode Single Fiber Converters must be used and ordered in couples. One set of A must be connected with another set of B for using. A transmitted optical wavelength 1310nm, receive optical wavelength 1550nm; B transmitted optical wavelength 1550nm, receive optical wavelength 1310nm. The distance of fiber is up to 20, 40km.
