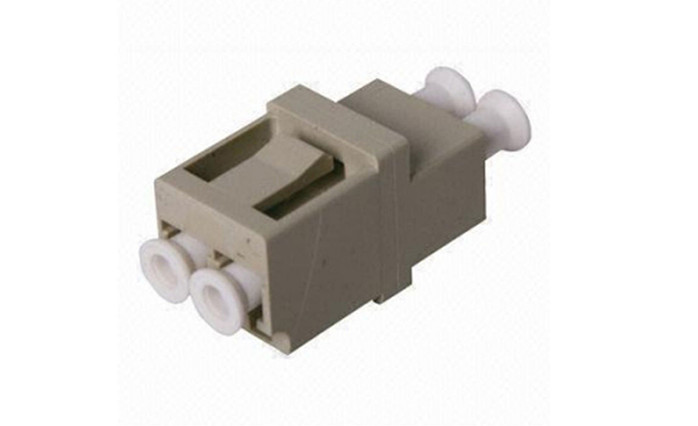

Ceramic or Bronze Fiber Optic Modulos Duplex Insertion loose 0.3 dB , Zirconia sleeve

Product Name: Ceramic or Bronze Fiber Optic Modulos Duplex Insertion loose 0.3 dB , Zirconia sleeve
Model NO.: YJ-A016
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: Ceramic or Bronze Fiber Optic Modulos Duplex Insertion loose 0.3 dB , Zirconia sleeve

Our Zirconia / PB Fiber Optic Attenuator for Multimedia Data processing networks

In a very good prices, every single piece of Zirconia / PB Fiber Optic Attenuator is tested in the workshop before delivering to the client.

The Attenuator are fully qualified to RoHS standards and ISO9001:2008.

Model Number: LC SM DX Fiber Optic Adapter
Product type: Fiber Optic LC Adapter
Certificate: RoHs
LC Adapter Insertion Adapter: ≤0.2dB
LC Adapter Return Loss: ≥45dB
LC Adapter Mode: Single mode & multi mode
LC Adapter Sleeve: Ceramic or Bronze
Color: Blue,beige,green,aqua and others
Operating temperature: -40~+75 ℃
Optional Connector: SC,LC,FC,ST,MU,MTRJ,MPO...

Description:

Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together.

They are available for use with either singlemode or multimode patch cables.

Wirenet provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.

These products are designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.

Please call with your specific requirements.

Applications:

Fiber to The Point (FTTX)
Fiber to The Home (FTTH)
Passive optical network (PON)
Local Area Network (LAN)
Cable Television (CATV)Test Equipment

Specifications :

Type	FC	SC	ST	LC	MU
Insertion loss(dB)	≤0.2	≤0.2	≤0.2	≤0.1	≤2.2
Repeatability(dB)	≤0.1	≤0.1	≤0.1	≤0.1	≤0.2
Interchangeability(dB)	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2
insertion times	≥1000
Working temperature	-40°C~+75°C

Ceramic or Bronze Fiber Optic Modulos Duplex Insertion loose 0.3 dB , Zirconia sleeve

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
