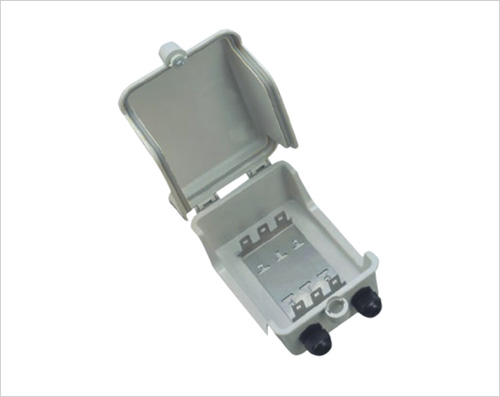

Plastic Outdoor DP Box 30 pairs

Quick Detail:

1. Can be with Max.3 pieces 10pair Krone LSA modules

2. Material:PC (UL94V0),Waterproof Performance IP54,UV protection.

3. Wall mounted type or pole mounted with adapt installation accessory.Standard pack for wall mounted without no special indication.

4. For krone LSA 10pair back mount modules,the mounting frame is included but the LSA module will be separately ordered .

5. With key and lock for secure, key lock and screw lock for option

6. Application:Ourdoor or indoor

Description:

The distribution block is a part of connection systems. It includes 8/10 pair connection/disconnection krone module, switching, high band modules, quick connect module, 25pair splicing module, 10pair STG module, MDF, STB module,Subscriber terminal block, back-mount frames, protection systems and other related accessories.

Such distribution box with mounting frame for the krone module is also available for capacity :

10pair connection,20pair connection,30pair connection,50pair connection,up to max.100pair for plastic material .

Option 2:

50Pair empty distribution box for wire termination on wall and on pole installation.You can put 10pair krone LSA module with the back mount frame or subscribe terminal block with railing for wire connection and lightning protection with different STB module.

Small capacity for copper wire connection.It is convenient for the application mounting to walls,wood,metal or poles, for networking building.It is offered under standard TIA/EIA568A/B,CE,RoHS,and ISO certificated .A widely used waterproof distribution box for outdoor application .There is earth wire inside for protection.

It offers easy access for terminations,there is standard back mount frames for mounting the krone profile module blocks.Simple hand tools and minimum skills required for installation.The cover can stand with 90 degrees in open position for easy access during installation .No wire stripping required. The rubber grommets at all drop wire entry and exit ports for protecting the wire from damage and also protecting the modules from water,duct,insects.The box can be used for 5pair to 30pair OEM as your requirement.

Applications:

For mounting to walls,wood,metal or concrete poled

Specifications :
