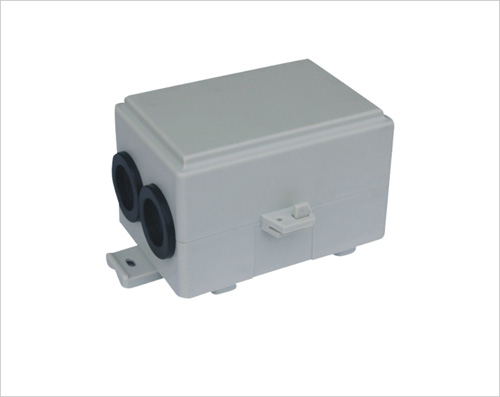

4Pair STB Module Distribution Points Box

Product Name: 4Pair STB Module Distribution Points Box
Model NO.: YJ-2010
Origin: China
Packing: 100pieces/box
Brand Name: YJ
Delivery Time: 10
Minimum Order: 200
Quality System Certification: RoHS

Product Details: 4Pair STB Module Distribution Points Box

Outdoor DP Box Plastic for STB Modules 2pairs

Empty distribution box for 2pair dropwire module(STB module),offerring good connection environment for telecommunication.

Material:PC,with steel rails.

Waterproof feature for outdoor application .

Main Features

Made of highly impact resistant PC

Flammability according to UL 94 FV0

Smallest distribution box designed for outdoors

Easy operation and wide range of wire

Technical Parameters

1) Contact resistance between conductor and contact: under normal ambient conditions, the contact resistance between contacts ≤3 mΩ. After high temperature test, low temperature test, temperature varing test and humidity heat test, the increasing resistance ≤2 mΩ. And after terminating for 200 times, the increasing resistance ≤2 mΩ.

2) Dielectric strength: under normal ambient conditions, after high temperature test, low temperature test, temperature varing test and humidity heat test, the insulation resistance between any two independent contacts, and/or between contacts and metal parts is able to withstand an AC voltage of of 1000V (virtual value) at 45Hz~60Hz sinowave for 1 minute, without spark over and flying arc

3) Gas tight performance: contact touches the conductor at both sides, and thus forming the gas tight area, while the area of gas tight occupies ≥50% of the touched area on each side.

4) Conductor diameter range: 0.4mm-1.05mm, while insulation ≤ 5mm

5) Pulling strength:≥25N while pulling from the vertical side of the contacts

6) Flame retardant performance: all plastic parts are flame retardant, reaching grade of UL FV0

7) Life circle: ≥200 times

ORDERING INFORMATION

Item no. Description Box Size
YJ-2010-1 1pair DP box for STB module (EMPTY) 95*45*50mm
YJ-2010-1G 1pair DP box with STB module(YJ-4027) 95*45*50mm
YJ-2010-1R 1pair DP box with STB module(YJ-4028) 95*45*50mm
YJ-2010-1O 1pair DP box with STB module(YJ-4029) 95*45*50mm
YJ-2010-2 2pair DP box for STB module (EMPTY) 145*95*75mm
YJ-2011 10pair DP box for STB module (EMPTY) 195*195*85mm
YJ-2012 20pair DP box for STB module (EMPTY) 350*190*95mm

The type of STB module is required as your application. -G is for YL-4027 unprotected,-R is for YL-4028 with GDT protection,-O is for YL-4029 with GDT and PTC protection.
