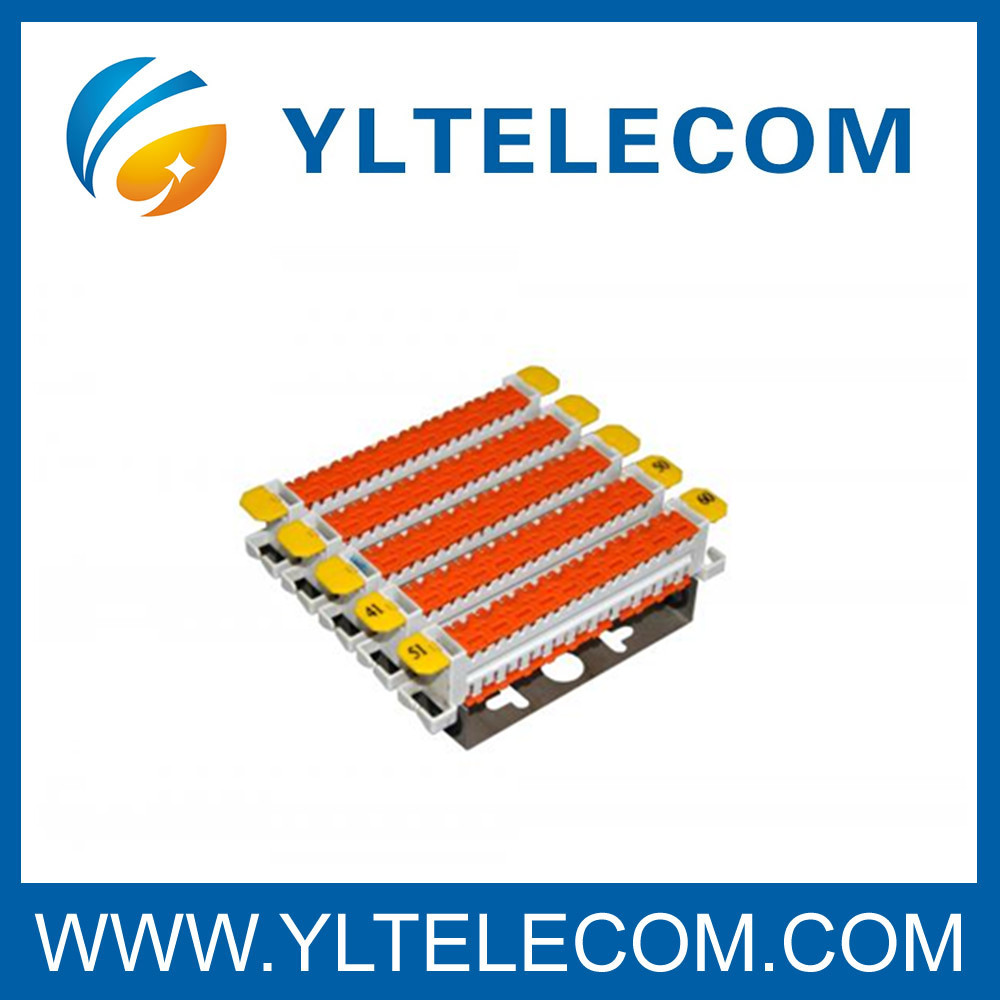

50 Pair Block 2810 IDC Connection Module 3M Quick Connect System Cat.5 QCS

3M Quick Connect System Cat.5 QCS 50Pair Block 2810 IDC Connection High integrity Toolless Module Gel-filled

Quick Detail:

1, Material: PBT or ABS(UL94V-0)

2, Tool-less Jumpering ,Simple termination practices increases technician productivity.

3, Gelled interconnect,gel-filled.High integrity connection for network reliability and broadband performances.

4, Visibility to Jumpers.Ability to inspect jumper termination allows validation of connection,minimizing rework.

5,Category 5 performance,cat.5 .Reliable high-speed data transmission .

6, Pair-at-once termination

7, Low termination force

8. 50pair as one block,standard back mount frames 8/10 pairs (Pitch 16mm).

9. The distribution box can be tyco type and 3M type,as per your option.

Description:

The QCS 2810 is a simple-to-use, tool-less copper block; an ideal solution for outside plant applications. Whether in cross-connect cabinets or at the edge of the network, the gel-filled, Cat. 5 compliant 2810 system is the solution.Wire range IDC contacts – solid copper conductor 0.4 mm to 0.6 mm 26 AWG to 22 AWG.

30Pair Tool-less Quick Connect Module Block

50Pair Tool-less Quick Connect Module Block

100Pair Tool-less Quick Connect Module Block

150Pair Tool-less Quick Connect Module Block

Block de Conexión 10 Pares (STG)

10 Pair Tool-less Quick Connect Module

This module is ideal for FTTN+DSL Solutions outside Plant Copper Connections, used in DP Box

Outdoor or Cross Connection Cabinet and Cat5e. Do not need to use any tool.Tool-Less Type

This module is IDC (Insulation Displacement Contact) connection modules that can be snapped on standard back mount frames 8/10 pairs (Pitch 16mm). Category 5 transmission performance as a standard. This module can be used in any modern network and is fully compatible with all kind of application. Wire termination and wire removal are easily operated with standard termination tool. Cables are managed from the top and jumpers from the side. The base of the modules offers cable and jumper strain relief facilities. Straight IDC contact design offers reliability and outstanding performance like multiple termination, wire retention and gas-tight connection. The module can connect solid copper conductors in a range of diameters from 0.4mm to 0.8mm with a maximum insulation sheath of 1.5mm.

Multiple terminations are possible with all kind of solid conductor gauges in the range of 0.4mm to 0.8mm termination and removal of wires with the same tool reliable .Easy to use improved wire retention (straight IDC) high rigidity and contact pressure on the conductor gas-tight connection high-density installation thanks to 16mm compact (1240 pairs on a 2 meters vertical frame) comprehensive range of protection circuits compatible with all STG accessories.

Application in the network

1. Suitable for high density installation (2400 pair single sided cross connection cabinets, 1600 pairs on 2.6 meters vertical MDF, containerized exchanges..).

2. STG modules are suitable for public telephony (MDF, cross connection cabinets, Distribution building), as well as for the private telephony and high data rates transmission.

3. The module can be used in any modern network and it is fully compatible with all kind of applications (XDSL.pairgain).

YJ-2827 Single pair test probe for YJ-2810A 10pair quick connect modules.

We offer various modules in telecommunication application, the products includes 5pair LSA type connection and disconnection module, 8pair and 10 pair connection disconnection krone module,back mount function and profile function, switching module,10pair Earth connection module, high band modules, 3M type quick connect module, 25pair splicing module, 10pair STG module, Subscriber terminal block, 50pair and 100pair krone block tag, back-mount frames, and other related accessories like LSA patch cord for disconnection and switching modules,earth bar,dust cover,label holder and so on.

The disconnection type CT module have provision of testing the electrical parameters of the exchange and distribution sides by insertion of test plug without actually disconnecting the jumper wire or the cable from the termination module.

The module housing material we mainly offer with imported GE PBT and ABS(UL94V-0).Both material we will use new rall material but not recycling material(first recycling or second recycling).So we can offer good performance modules.You can get very cheap products in the market but they are mainly made of such recycling material PBT or ABS.

Applications:

High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.

Specifications :

Cat.5e Performance Toolless Quick Connect Connection Module with Gel YJ-2810B ,widely asked for replacement of 3M Quick connect module.There is single pair test probe YJ-2827 for test.Highly price performance offered,with good quality.

We make sure that every product is 100% tested in the factory before packing.

Our products are popular with world's Telecom operator and users.Clients from America, South America, Europe,Asia and Africa and happy with our quality.We can offer OEM and ODM service according to customer's requirement as well. Better quality leads to more success ! One hundred successful orders lost in a complaint !

Order to be delivered goods within 7-10 days after we received your payment usually.For exact date,please check with our sales. Meanwhile,we could provide competitive shipping service for you, by sea, by air or by express. Appointed forwarder is also available as you prefer.
