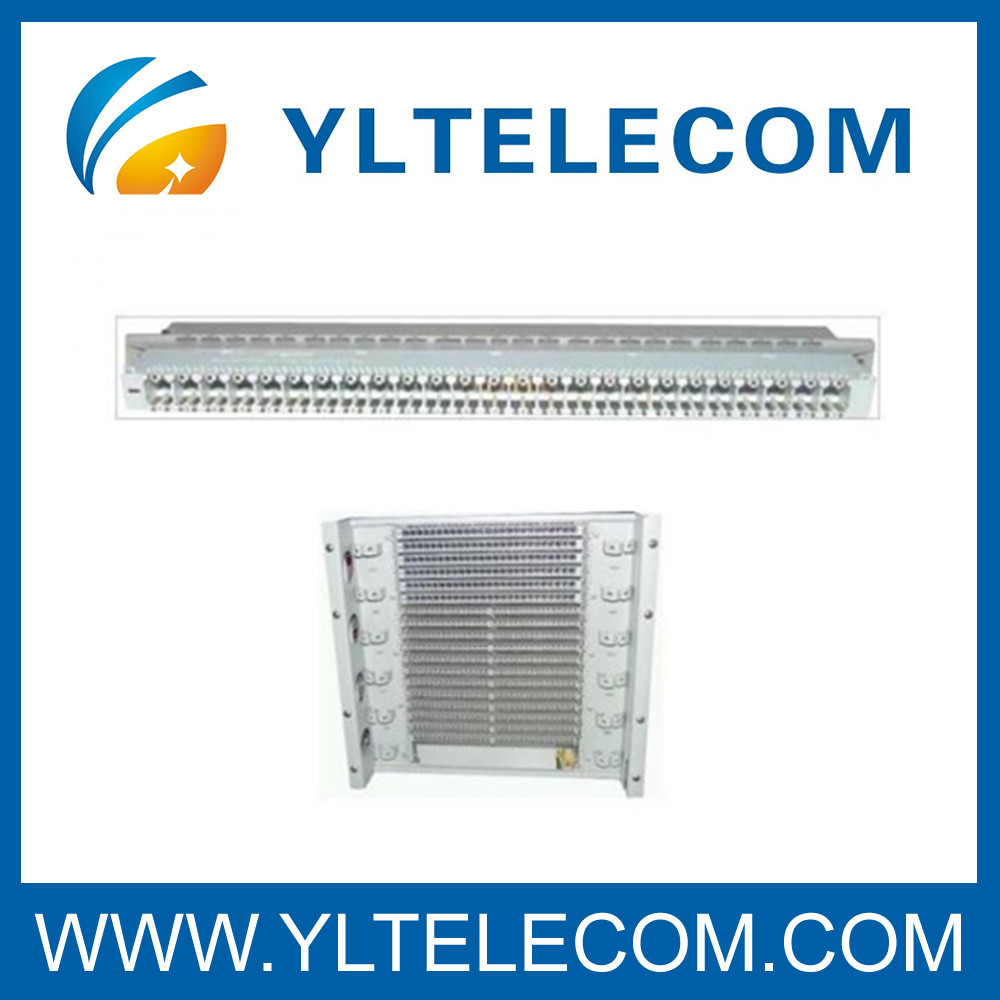

ZTE 25 Pair Protection Module Main Distribution Frame 19 Inch Sub Rack for POTS / DSL
Quick Detail:
1, Material: PBT or ABS(UL94V-0)
2, Contact material : Phosphor Bronze
3, Contact Gold Plating
4, Adopts double-layer folding outrigger, overgilded, convenient reinsertio
5, Re-terminate without the disconnection
6, Prevent the over-voltage and over-current caused by the lightning.
Description:
FT2-92C 25-pair module utilizes the gold plated, world famous IDC (insulation-layer displacement connection technology). The gas-tight contacts ensure a reliable and long lasting connection. FT2-92C 25-pair protection module are wired to industry standard 25-pair Telco connectors that are mounted in the rear of the back mount frame, allowing for POTS/DSL service installations. These blocks are often used with 32-pair module. Commonly, these blocks are installed with 32-pair module together on a 19" sub-rack, which then will be installed on a 19" frame.
FT2-91C 32-pair test module
Features & Benefits:
Adopts double-layer folding outrigger, overgilded, convenient reinsertion, better electrical performance, long usage life, four contact points between plug-in lead and outrigger, large airproof region, low contact resistance, strong anti-plug-out force, convenient reliable plug-pull.
Front operation, can re-terminate without the disconnection.
The protector can be inserted in each pair to prevent the over-voltage and over-current caused by the lightning. It can prevent the harm and damage to the exchanger equipment, and keep the wire safe.
Minor module design, high distribution density which can combine to different capacity flexibly.
A maximum of 2 equal diameter solid conductors only, of up to 0.5 mm conductor diameter can be terminated per slot. Only 1 conductor of stranded wires per slot can be terminated. If any conductors >0.5 mm diameter have been terminated, reversal to smaller conductors is no longer possible.
ENVIRONMENTAL AND SAFETY
Environment for use: Indoors or in environmentally sealed enclosures rated
IP54 or greater
Operating temperature range: +5° C to +40° C
Maximum relative humidity: ≤ 85% (30° C)
Applications:
1. Widely used in POTS/DSL application
2. Offers superior high-speed connections for voice and DSL in backbone cabling
3. Sub-rack assembly can be mounted on 19-inch racks
Specifications :
| MECHANICAL | |
| Wire range for solid and stranded copper conductors | 0.32 mm to 0.6 mm |
| Wire insulation diameter range (PE, PVC) | 0.7 mm to 1.4 mm |
| Number of wire terminations | ≥ 200 |
| Wire insertion force (0.5 mm conductor dia) | 6 N |
| Wire pull out force, radial (0.5 mm conductor dia) | ≥ 5 N |
| Wire pull out force, axial (0.5 mm conductor dia) | ≥ 28 N |
| ELECTRICAL | |
| Contact resistance (from input to output IDC) | Typically <5 mΩ |
| Dielectric strength | ≥ 1.0 kVAC (45~60Hz)/min |
| Surge voltage strength (1.2/50 μsec wave shape) | ≥ 2.5 kV |
| Surge current strength (8/20 μsec wave shape) |
≥ 3 kA for modules ≥ 0.5 kA for patch plugs |
| Insulation resistance | ≥ 6000 MΩ at 500 VDC |
