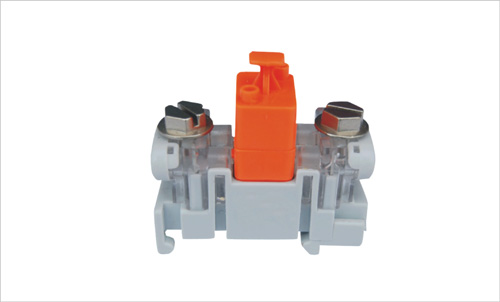

1 Pair STB Module With 5 Point Protection

One Pair Drop Wire Connector Module With 5 Point protection GDT and PTC

Quick Detail:

1, Material: PBT or ABS(UL94V-0)

2, Contact: Phosphor Bronze

3, 5 pole connection

4, For Customer Wire (CW) and Drop Wire(DW) Connection

5, The plug can be with 3point protector(color red) and 5point protect (color orange),if without protection the color is grey

6. Available to install this drop wire module into 1pair distribution box,2pair distribution box,10pair distribution box ect.,waterproof,IP54.

7, 100% test passed,arrester voltage usually for 230V,it can be on your requirement.

Description:

1pair STB Module Without Protection Subscriber Connector Unit VX-SB

The STB module (1 pair drop wire connection module with protection ) provide a connection point between an exchange-side cable pair and a

distribution pair for telecommunication equipment. It incorporates a 5-point plug in module to provide continuity and a range of other options.
Removal of the plug-in module does not disturb wire connections but makes contacts to them available for testing of both sides of the telecommunication network.

The STB module (1 pair drop wire connection module with protection ) is especially recommended for:

1. Outdoor connections where the environment conditions are extremely atrocious to protect telecommuniactin equipment and circuitry line.

2. Terminations where user development characteristics require future flexibility in terms of the type of protection or filtering capabilities. Offering box with capacity from 1pair to 20pair for application.

ORDERING INFORMATION

Item no. Description

YJ-4027 Drop wire(STB) module without protection,Grey Plug
YJ-4028 Drop wire(STB) module with GDT protection,Red Plug
YJ-4029 Drop wire(STB) module with GDT and PTC protection,Orange Plug

Applications:

The subscriber connector unit is used for the connection of an outdoor to an indoor drop wire. It allows for circuit testing in both network directions.The box provides environmental protection. The product is specially recommended for  aggressive environmental conditions,terminations where future requirements
may include different types of protection.
